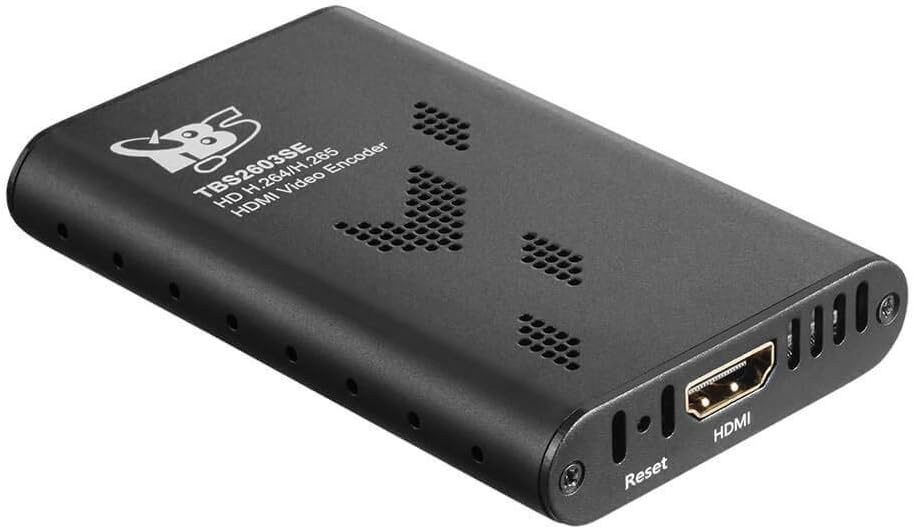

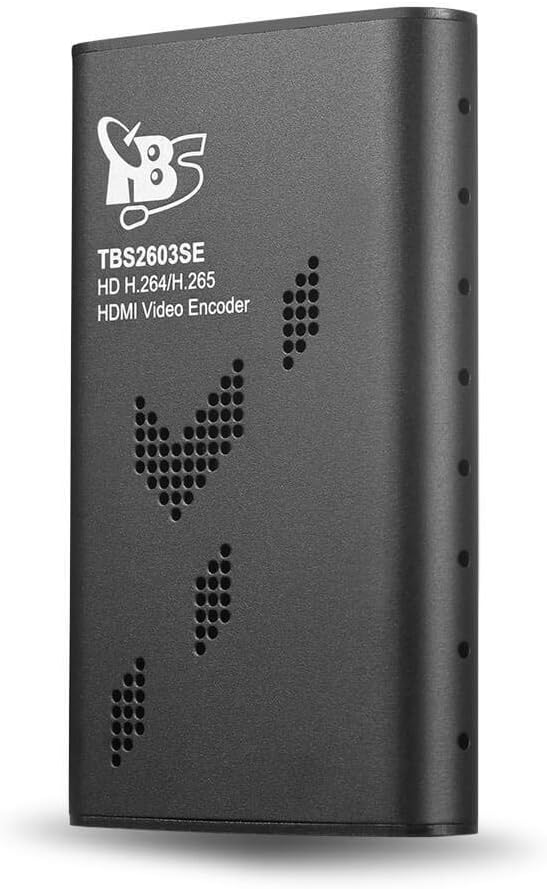

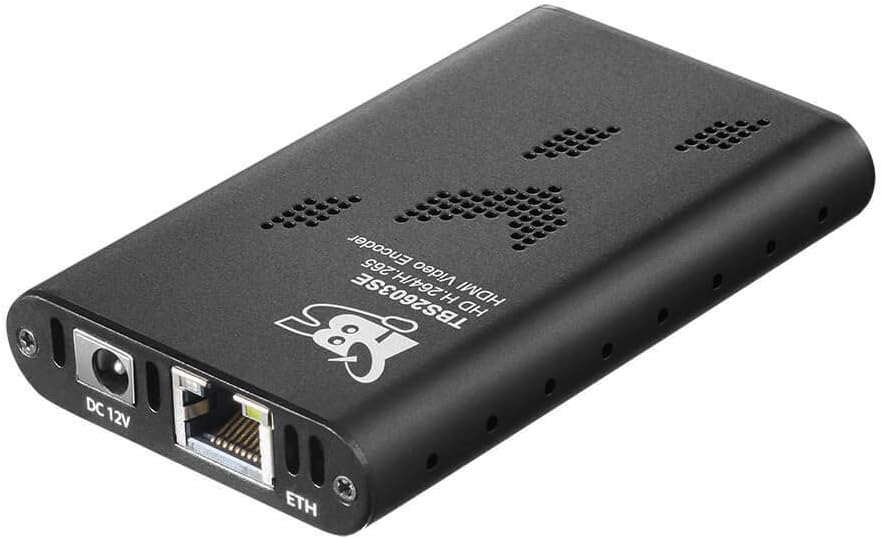

TBS2603SE NDI HDMI Encoder, H.264 H.265 Video Encoder I3209
TBS2603SE NDI HDMI Encoder, H.264 H.265 Video Encoder I3209
NDI|HX SUPPORT: NDI is a registered trademark of NewTek, TBS encoder has integrated native NDI|HX support which allows to send your HDMI video source through your local network, over Ethernet for use with other NDI compatible systems.
HD H.265/H.264 HDMI ENCODER: Encode video streams from any HDMI video source to various media streaming servers, it generates an H.264/H.265-encoded stream output and the AAC, Mp3 audio format
WEBPAGE CONTROL: Flexible and friendly webpage control, easy to check and control the status of the device.
MULTIPROTOCOL OUTPUT: Compliant with HTTP HLS RTMP(RTMPS) RTSP UDP SRT protocols, each channel has multiple protocols for outputting
NDI UPDATE: NDI HAS RELEASED THE LATEST FIRMWARE, CUSTOMERS WHO HAVE ALREADY PURCHASED PLEASE CONTACT US IF NEED TO UPDATE
ANY PROBLEM WITH NDI PLEASE CONTACT US BEFORE RETURNING, WE WILL PROVIDE THE BEST TECHNICAL SUPPORT TO HELP YOU SOLVE THE PROBLEM
NDI|HX is a registered trademark of Newtek, Inc.
TBS Encoder has been integrated native NDI|HX support which allows to send your HDMI video source through your local network, over Ethernet for use with other NDI|HX compatible systems. It helps to connect your video cameras and other devices to your live production system, video applications or streaming devices
Features:
Flexible and friendly webpage control
Visual input (Preview)
AAC,MP3, MP2, PCMA audio encoding
Bitrate of output video stream is adjustable from 500kbit/s to 20Mbit/s
Support HTTP HLS(m3u8) RTP/UDP Unicast Multicast RTSP RTMP/RTMPS SRT
Support insert Logo, Text, Mosaics Or Time to the video
Support output displayed video resolution and frame rate setting(max 1920x1080P@60fps)
Support HDCP and HD blue-ray
Stable and effective, support 7 x 24h working time
Video:

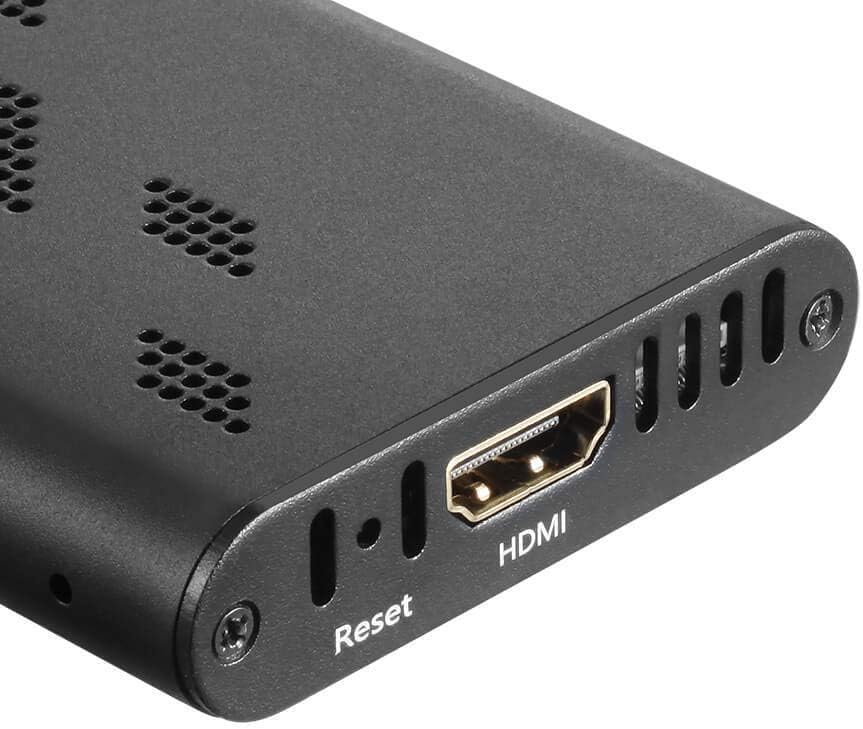

Input: 1x HDMI 1.4
Input Resolution: 1920x1080P_50/60HZ; 1920x1080I_50/60HZ; 1280x720P 50/60HZ; 720x576; 640x480, and etc.
Ouput Resolution: 1920x1080@60fps; 1680x1050; 1280x720; 1024x576; 850x480; 720x576; 720x480; 640x480;480x360;360x240; auto; customized and etc.
Encode: H264 base line, H264 Main, H264 High, H265 Main
BitRate: 0.5Mbps-20Mbps
BitRate Control: CBR, VBR, AVBR,FIXQP
Protocol: SRT, HTTP, HLS, RTSP, RTP/UDP Unicast/Multicast, RTMP(RTMPS), SRT
Audio:
Encoding: AAC, MP3, MPEG2, PCMA
Sampling rate: 16K, 32K, 44.1K, 48K
Sampling precision: 16 bit
BitRate 32Kb/s ~ 256Kb/s
Network Stream IN:
Video: H264, H265
Audio: MPEG2, MP3, AAC
NDI Interface:
NDI Channels enable
NDI|HX output stream being detected automatically

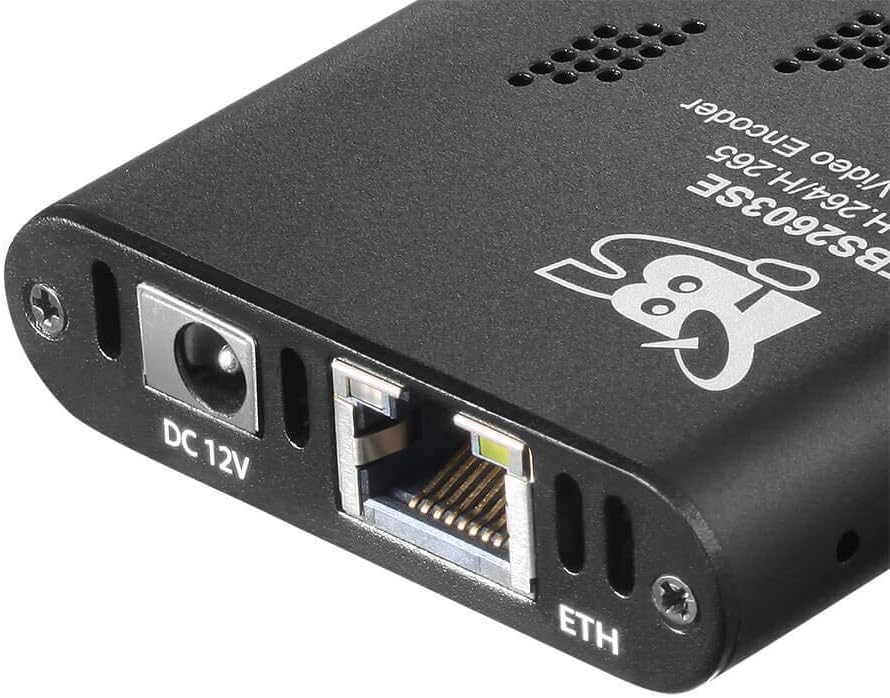

SystemEthernet/RJ45: 1000 Base-T Ethernet interface
Supported System: Windows XP/VISTA/SERVER/WIN7/WIN10; Linux; MAC OS
Control: webUI
