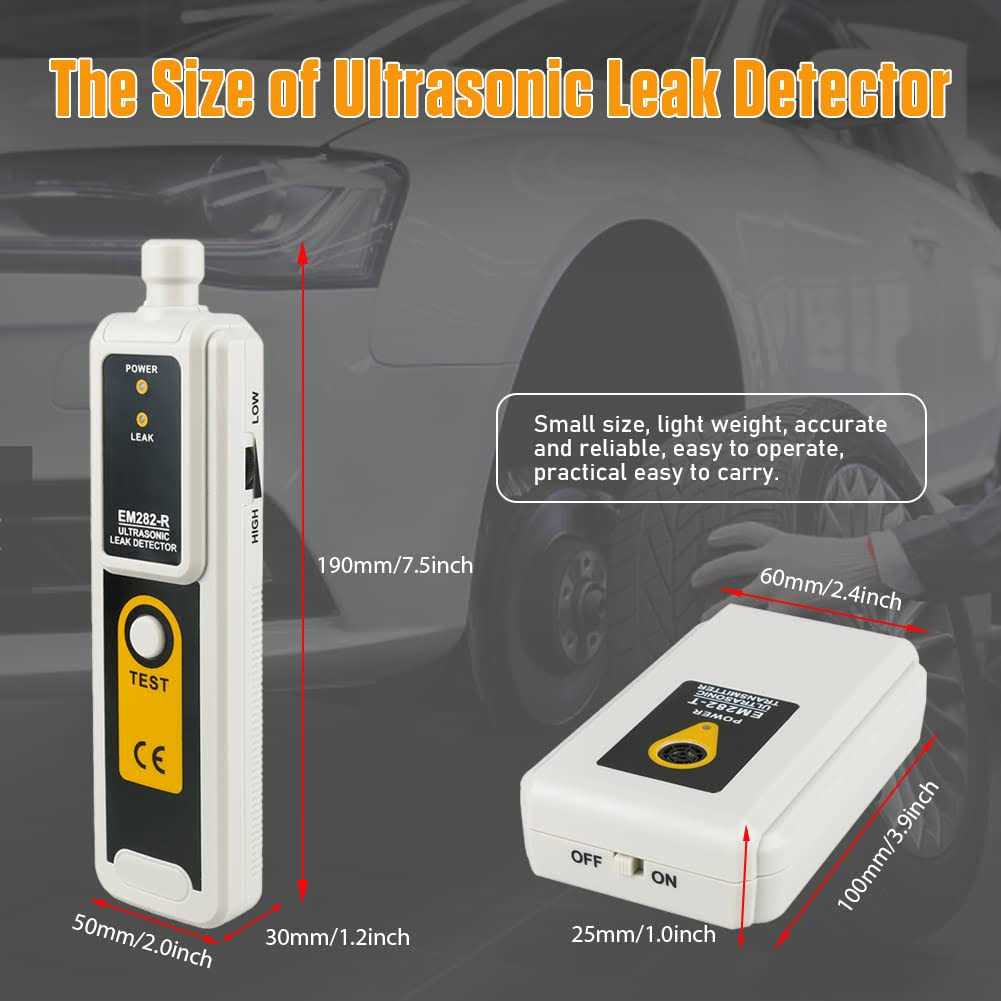

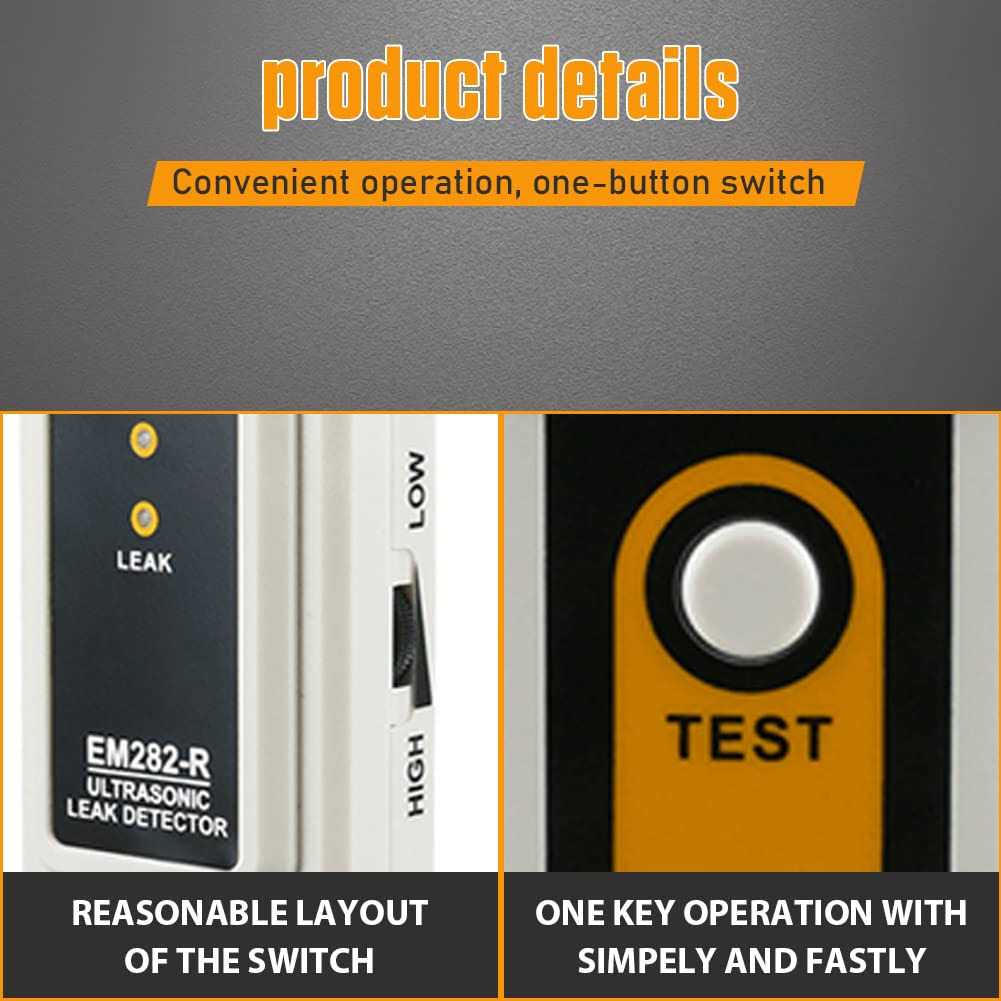

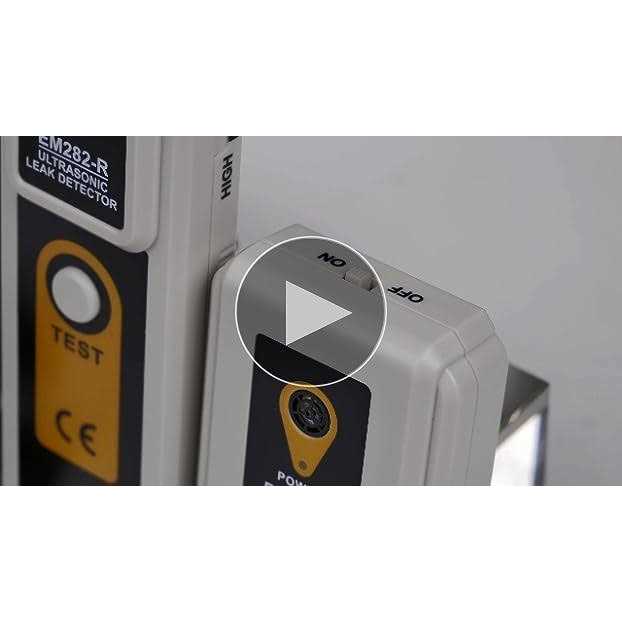

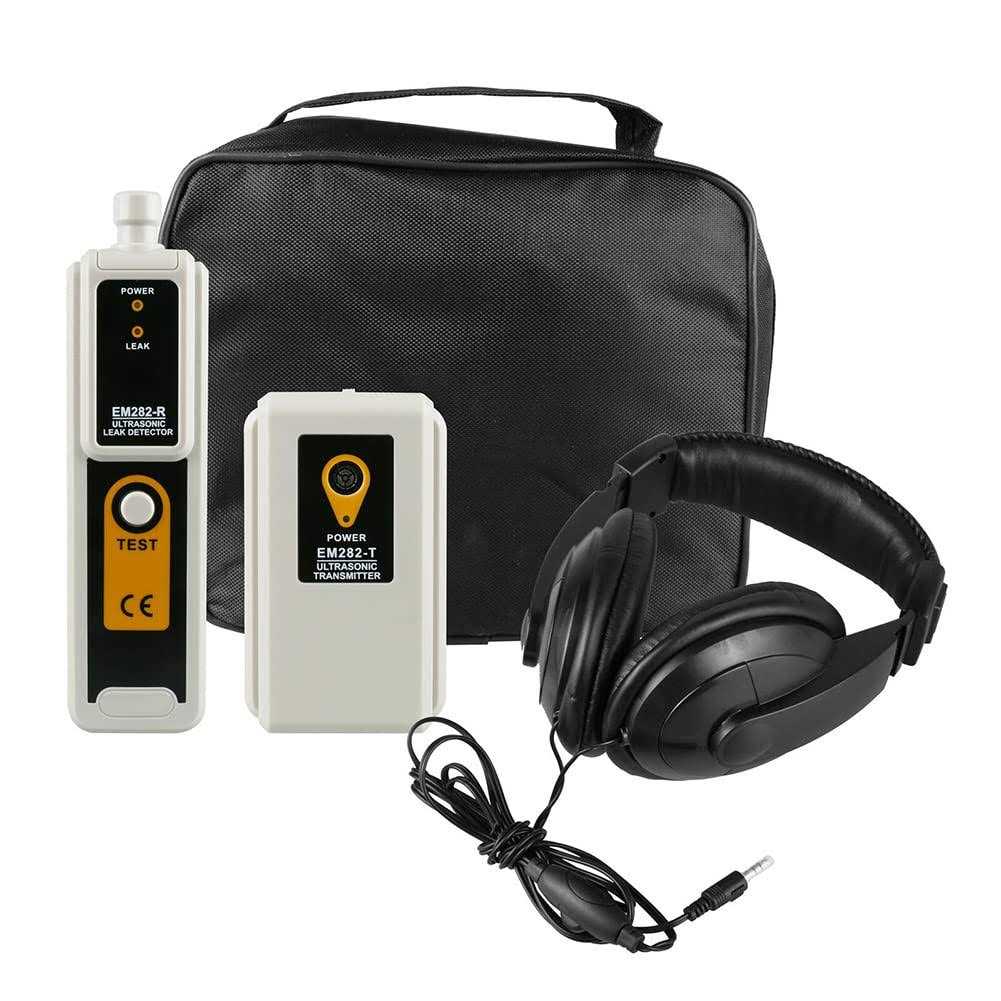

Ultrasonic Leak Detector with Earphone and Transmitter 40KHz G55426

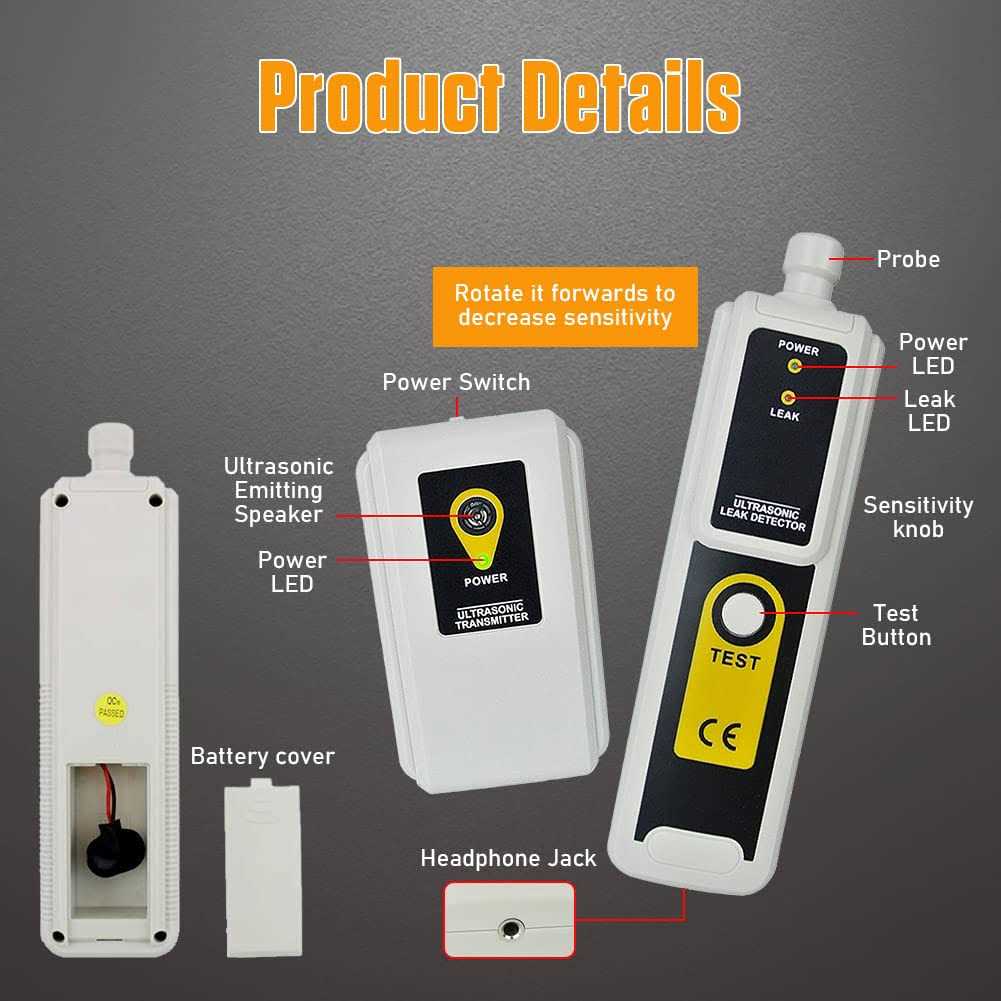

Leak Detection Tools, Ultrasonic Leak Detector & Transmitter Electronic Stethoscope Air Leak Detector Noise Detector Snoop Leak Detector for Pipeline, Air Conditioner, Automobile Glass Leak Detection The working principle: If a container or pipe is filled with gas, when its internal pressure is stronger than the external pressure, due to the large internal and external pressure difference, once the container has a leak, gas will be flushed out of the leak hole. When the size of the leak hole is small and the Reynolds number is high, the turbulence will be formed when the gas blows out. The turbulence will produce a certain frequency of sound waves near the leak hole. The frequency of the acoustic wave vibration is related to the size of the leak hole. Audible sounds can be heard. When the leak is small and the sound wave frequency is high, the human ear cannot hear it, but they can spread in the air and are called no-load ultrasonic waves. Ultrasound is a high-frequency short-wave signal, and its intensity rapidly decays as the propagation distance increases. Ultrasonic waves have directionality. With this feature, the correct leak location can be determined. Transmitter: Indicator : LED Operating Condition : Temperature : 0 ~ 40C Relative humidity : less than 80 percent Output Frequency : 40kHz Battery : 9V Low battery Indication : “”POWER””LED can’t light Size : Transmitter :101 x 59 x 28mm /Main Unit; 192mm x 50mm Item Weight : Transmitter : about 90g (including battery) /Main Unit : 115g Receiver: Notifications Indication : The “”LEAK”” LED lights and the “”ticking tone”” increases in frequency Frequency Response : 40kHz +/-2kHz Operating Condition: Temperature : 0~40C Relative humidity : less than 80 percent Battery : 2 x 9V Battery (FREE) Size : 192 x 50 x 30mm Weight : about 115g earphone: Connect the earphone to the earphone jack of the leak detector, put on the earphone, operate the detector, and judge the location of the leak according to the indicator light and the frequency sound emitted by the earphone Read more Way of working: The EM282-R can work with dynamic and main dynamics. When real- time inspection of the gas pipeline, it can be used alone, use it to capture the tiny ultrasonic signals generated when the gas leak, you can determine the correct location of the leak. This way of working is called dynamic. When the EM282-R and EM282-T are used together, non-real-time inspection can be performed on the object to be inspected. That is, an ultrasonic signal of
